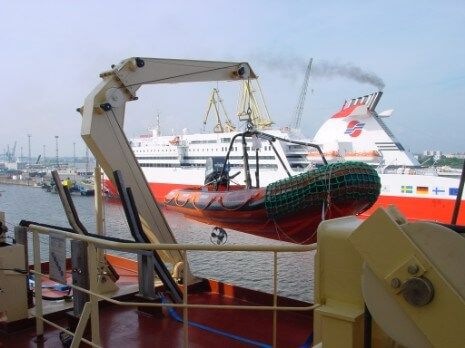

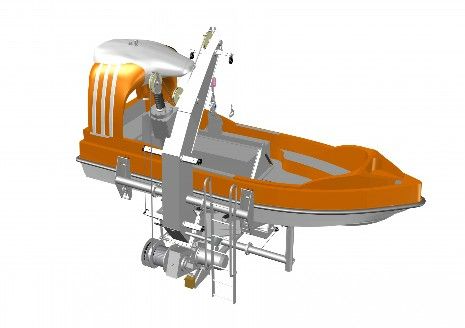

Rescue Boat Davit - Pivot Type
Pivot davit systems, specifically the Rhp.-type davits, are designed for the efficient handling of rescue boats.
These systems offer a low-build solution with hydraulic-powered turning capabilities, providing a perfect balance between low weight and an extremely low center of gravity. They are fully compliant with the current SOLAS rules and are MED-certified for reliability and safety. These davits are available in three standard sizes to accommodate boats with launching loads ranging from 15kN to 36kN.
Optional Features:
- An electric system with a stainless starter box with push buttons in an on-deck execution.
- An embarkation platform with an access ladder for enhanced access and safety.
Ensure the safety and efficiency of your rescue boat handling operations with Pivot Davit Systems. Their low-build design, hydraulic-powered turning, and robust features make them an excellent choice for maritime operations where rescue boats are a crucial component of safety and compliance.
Key Features:
-
Stool for Deck Welding: Each system includes a stool designed for welding to the deck, providing a secure foundation for the davit.
-
Robust Arm Design: The arm is constructed in a box shape, ensuring durability and support for the rescue boat.
-
Rescue Boat Winch: Equipped with a rescue boat winch featuring a centrifugal brake and an electric motor in IP56 for reliable hoisting operations.
-
Electric System: The system includes an electric system with a starter box for under-deck use and a push-button box for on-deck control, ensuring smooth operation.
-
Galvanized Wire Rope: The non-rotating steel wire rope is galvanized for corrosion resistance and safety.
-
Off-Load Release Hook: The system includes an off-load release hook or a galvanized suspension link for secure boat attachment and detachment.
-
Remote Control: Operate the system with ease using the stop-go type remote control.
-
Lashing Gear: The system features lashing gear with polyester belts and stainless steel ratchets for added security.
-
Maintenance Slings: For convenience and maintenance, maintenance slings are included.
