NEO Self-Inflating Oil Containment Booms

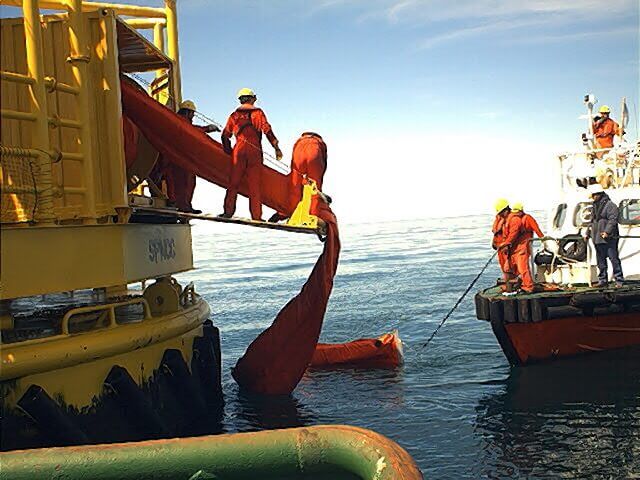

NEO Boom is a strong, durable boom that combines the compactability of an air-inflated boom with all the benefits and strength of a boom having conventional foam flotation. The product has been proven over years to be a cost-effective solution where storage space is limited but the application requires a durable containment boom. Ease of deployment, excellent wave conformity, and high buoyancy-to-weight ratios are key NEO Boom benefits.
- NEO Boom requires approximately 1/3 the storage space needed for conventional booms and can be deployed by fewer personnel.
- NEO Boom's special flotation foam is self-expanding, which makes storage, mobilization, and deployment a much simpler task.
- NEO Boom has no internal devices or ancillary equipment for inflation or deflation.
- NEO Boom is unsinkable and will maintain functional freeboard even in damaged condition
- NEO Boom self-inflates with a patented closed-cell/open-cell polyfoam combination. You simply open the air valve for boom self-inflation and deflate the boom by rolling it up into a coil or winding it onto a boom reel for compact storage.
NEO 2
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
10 (25.4) |
| Float freeboard, in (cm) |
4 (10.2) |
| Skirt draft, in (cm) |
6 (15.2) |
| Total tensile strength, lb (kg) |
6,000 (2,722) |
NEO 3
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
18 (45.7) |
| Float freeboard, in (cm) |
6 (15.2) |
| Skirt draft, in (cm) |
12 (30.5) |
| Total tensile strength, lb (kg) |
6,000 (2,722) |
NEO 4
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
18 (45.7) |
| Float freeboard, in (cm) |
6 (15.2) |
| Skirt draft, in (cm) |
12 (30.5) |
| Total tensile strength, lb (kg) |
15,000 (6,804) |
NEO 5
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
24 (60.1) |
| Float freeboard, in (cm) |
6 (15.2) |
| Skirt draft, in (cm) |
18 (45.7) |
| Total tensile strength, lb (kg) |
17,500 (7,938) |
NEO 6
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
24 (60.1) |
| Float freeboard, in (cm) |
8 (20.3) |
| Skirt draft, in (cm) |
16 (40.6) |
| Total tensile strength, lb (kg) |
20,500 (9,299) |
NEO 7
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
30 (76.2) |
| Float freeboard, in (cm) |
10 (25.4) |
| Skirt draft, in (cm) |
20 (50.8) |
| Total tensile strength, lb (kg) |
20,500 (9,299) |
NEO 8
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
36 (91.4) |
| Float freeboard, in (cm) |
12 (30.5) |
| Skirt draft, in (cm) |
24 (60.1) |
| Total tensile strength, lb (kg) |
28,000 (12,701) |
NEO 9
| SPECIFICATIONS | |
|---|---|
| Overall height, in (cm) |
42 (106.7) |
| Float freeboard, in (cm) |
14 (35.6) |
| Skirt draft, in (cm) |
28 (71.1) |
| Total tensile strength, lb (kg) |
42,000 (19,051) |
