EAM UXF-35
USA: FAA TSO-C13f, Type I
UK: CAA BCAR B4-8
Europe: EASA ETSO C13f, Type I
Italy: ENAC
Brazil: ANAC RBAC 21
Japan: JCAB CARJ Article 152

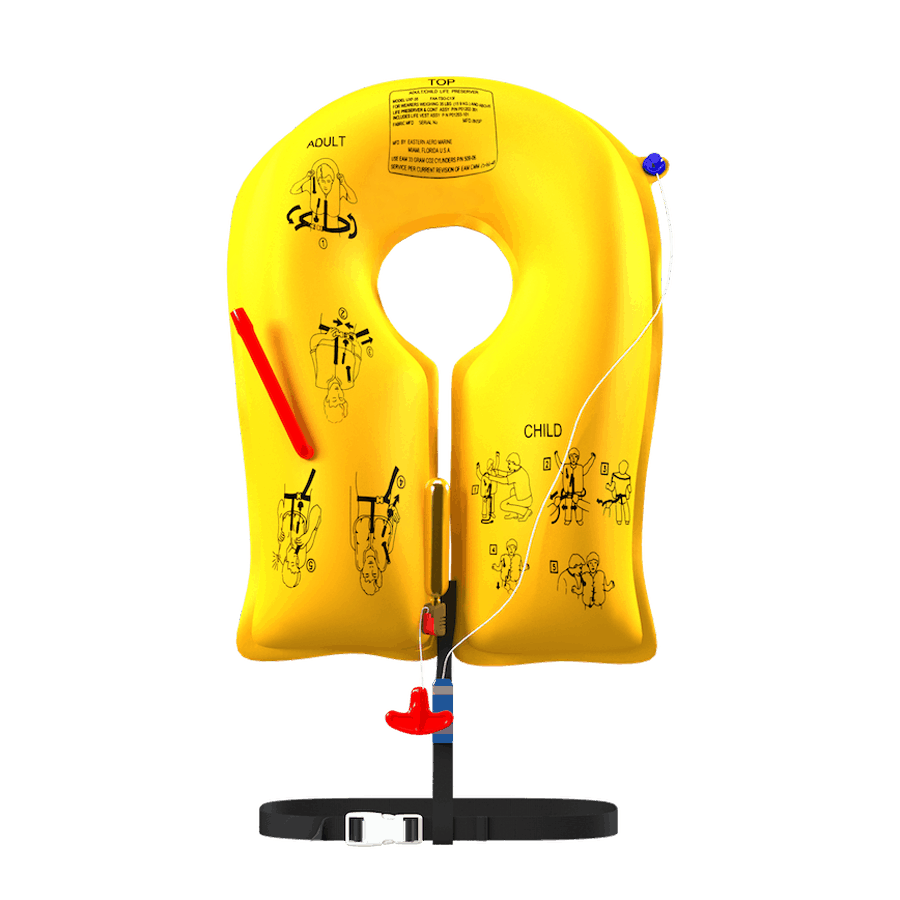

This single cell vest is the lightest weight aviation vest in the world, weighing only 0.9 lbs (408 grams) 5 year frequency of inspection comes standard, 10 year version available.
| Inflated Buoyancy: | 35 lbs. (156 Newtons) minimum |
| Inflated Volume: | 970 cu. in. (16 liters) minimum |
| Approvals: |
USA: FAA TSO-C13f, Type I |
| Category of Preserver: | Adult/Child Combination |
| Weight of Wearer: | 35 lbs. (15.91kg) and above |
| Inflatable Buoyancy Cell:: |
Single Cell |
| Material/Construction: |
Urethane Coated Nylon fabric, RF Heat Sealed Seams |
| Inflation System: |
Manual CO₂ Inflator and an Oral Inflation Tube |
| Color: | Passenger Yellow or Crew Molten Orange |
| Humidity: |
Up to 95% relative humidity |
| Altitude: | -2000 to 45,000 ft. above sea level |
| CO2 Gas Charge: | 1 x 0.073 lbs. (1 x 33 grams) |
| Survivor Locator Light: | Water-activated. FAA TSO-C85 or TSO-C85a Approved. |
| Packaging Options: |
- Flame Retardant 0.004 inch (0.1 mm) thick polyethylene bag with Tear Open Strip |
| Other Options: |
-Demonstration Vest |
| Service Life: |
Indefinite if unit continues to pass periodic maintenance inspection |
| Frequency of Inspection: |
P01202-1XX Assys. - 60 months from in-service date (no later than 63 months from manufactured date) for first maintenance inspection, every 60 months for subsequent inspections P01202-2XX, P01202-3XX Assys. - 60 months from in-service date (no later than 63 months from manufactured date) for visual inspection, 10 years from date of manufacture for first maintenance inspection, every 10 years for subsequent inspections |
| Temperature: |
Operational Range: -65 to 120 °F (-54 to 48.9 °C) Storage Range: -65 to 165 °F (-54 to 73.9 °C) |
