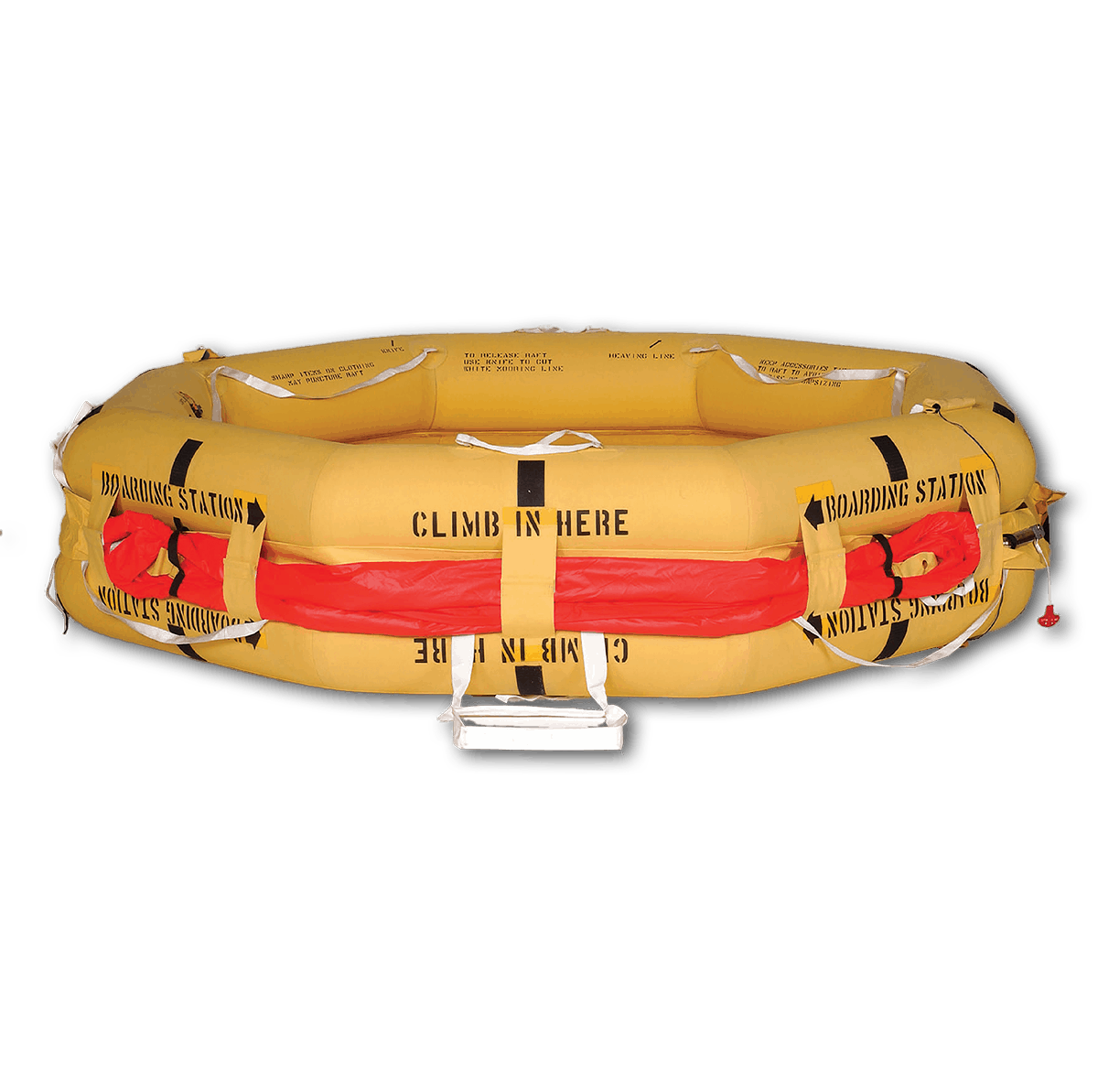

EAM-T6A

Overview

SPECIFICATIONS

Capacity	Rated: \| Overload: 9 Persons
Approval	USA: FAA TSO-C70a, Type I Japan: JCAB CARJ Article 152 Australia: CAA CAO 103.15 Germany: LBA 40.320 R0425A109: Canada: CAA ANO II, No.8 Schedule II
Color	Tube: Yellow Canopy: Fluorescent Orange Stabilizing Bags: Fluorescent Orange Carrying Case: Yellow
Diameter Raft Tube	10.5" (267mm)
Inflated Volume: @ 1.50 psig	Tube 1: 9.8 ft³ (0.28 m³) Tube 2: 9.8 ft³ (0.28 m³) Total: 19.6 ft³ (0.56 m³)
Tube Volume Per Person: @ rated capacity	3.26 ft³ (0.0925 m³)
Total Tube Buoyancy	1534 lbs. (695.8 kg)
Buoyancy Per Person: @ rated capacity	255.6 lbs. (115.9 kg)
Total Deck Area	21.6 ft² (2.01 m²)
Deck Area Per Person: @ rated capacity	3.6 ft² (0.33 m²)
Tube Operating Pressure	Minimum: 1.5 psig (0.10 bar) Nominal: 2.0 psig (0.14 bar) Maximum: 3.0 psig (0.21 bar)
Pressure Relief Valves	Open: 2.5 - 3.0 psig (0.17 - 0.21 bar) Close: 2.0 psig (0.14 bar)
Tube Burst Pressure	Over 6 psig (0.4 bar)
Inflation System	R0425A1XX: CO₂ System (2 cylinders) Cylinder Size: 82 in³ Cylinder Type: US DOT-3AA2100, Steel Charge Pressure: 2100 psi Charge Weights: CO₂: 1.98 to 2.04 lbs. (0.898 to 0.925 kg) R0425A3XX, A6XX: Lightweight System (1 cylinder) Cylinder Size: 144 in³ Cylinder Type: DOT-SP 9894-4500, TC-3 HWM 310 Charge Pressure: 4500 psi Charge Weights: CO₂ : 1.00 to 1.02 lbs (0.434 to 0.462 kg) Charge Weights: N₂ : 1.33 to 1.37 lbs (0.603 to 0.621 kg)
Environmental Limits
Temperature
Humidity	Up to 95% relative humidity
Altitude	-2000 to 45,000 ft. above sea level
Service Life	Indefinite if raft continues to pass periodic maintenance inspection
Frequency Of Inspection	R0425A1XX: 12 months from date of manufacture for first maintenance inspection, every 12 months for subsequent inspections R0425A3XX, A6XX: 36 months from date of manufacture for first maintenance inspection, every 36 months for subsequent inspections

APPROVALS

USA: FAA TSO-C70a, Type I
Japan: JCAB CARJ Article 152
Australia: CAA CAO 103.15
Germany: LBA 40.320

R0425A109:
Canada: CAA ANO II, No.8 Schedule II

- For commercial airlines and Air Cargo use
- Twin tube
- Rated capacity 6, Overload capacity 9
- Compact, lightweight. Constructed of neoprene coated nylon
- High tech inflation system
- Competitively priced
