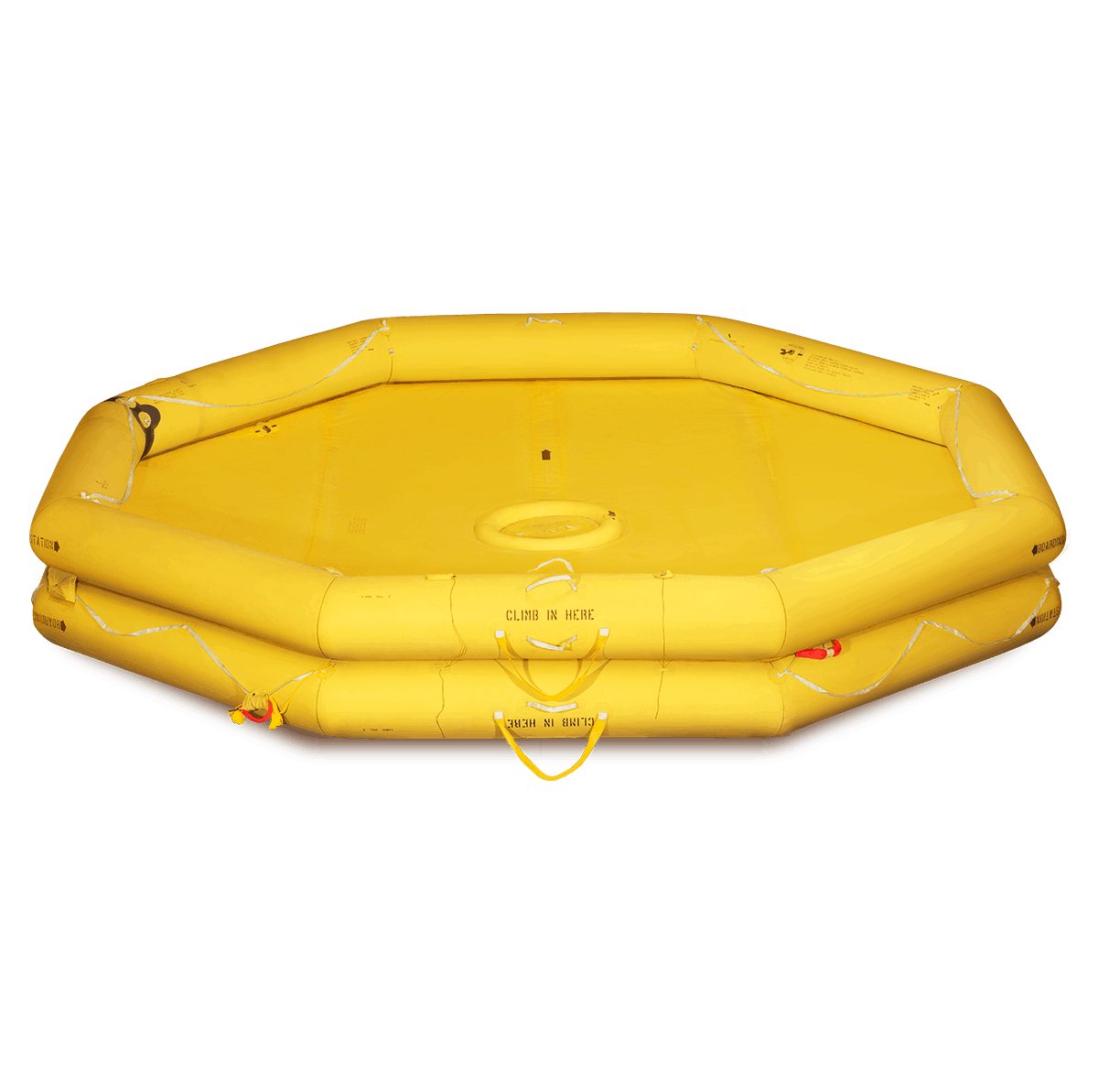

SPECIFICATIONS
| Capacity |
Rated: | Overload: 84 Persons |
| Approval |
USA: FAA TSO-C70a, Type I |
| Color | Tube: Yellow Canopy: Fluorescent Orange Carrying Case: Yellow |
| Diameter Raft Tube | |
| Inflated Volume: @ 1.50 psig |
Tube 1: 80.0 ft³ (2.27 m³) |
| Tube Volume Per Person: @ rated capacity | 2.86 ft³ (0.0809 m³) |
| Total Tube Buoyancy | 9520 lbs. (4318 kg) |
| Buoyancy Per Person: @ rated capacity | 170 lbs. (77.1 kg) |
| Total Deck Area | 201.65 ft² (18.734 m²) |
| Deck Area Per Person: @ rated capacity | 3.60 ft² (0.334 m²) |
| Tube Operating Pressure |
Minimum: 1.5 psig (0.10 bar) |
| Pressure Relief Valves |
Open: 2.5-2.7 psig (0.17-0.19 bar) |
| Tube Burst Pressure | Over 6 psig (0.4 bar) |
| Inflation System |
Cylinder Size: 285 in³ |
| Environmental Limits | |
| Temperature | |
| Humidity |
Up to 95% relative humidity |
| Altitude | -2000 to 45,000 ft. above sea level |
| Service Life |
Indefinite if raft continues to pass periodic maintenance inspection |
| Frequency Of Inspection |
36 months from the date of manufacture for first maintenance inspection, every 36 months for subsequent inspections |
