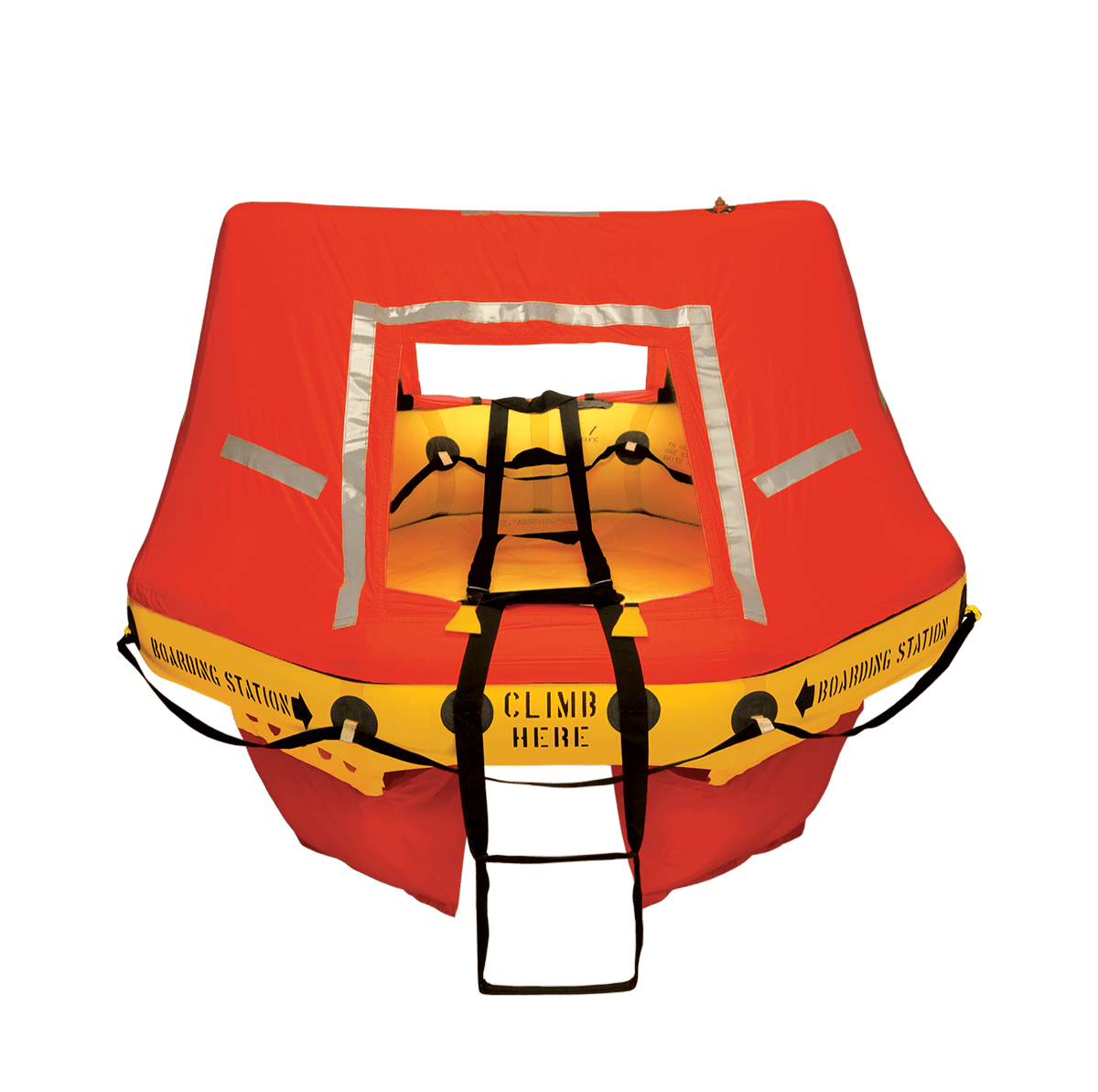

SPECIFICATIONS
| Capacity |
Rated: | Overload: 6 Persons |
| Approval |
USA: FAA TSO-C70a, Type II |
| Color | Tube: Yellow Canopy: Fluorescent Orange Stabilizing Bags: Fluorescent Orange Carrying Case: Yellow |
| Diameter Raft Tube | 11.53" (29.29 cm) |
| Inflated Volume: @ 1.50 psig |
Tube: 14.45 ft³ (0.4092 m³) |
| Tube Volume Per Person: @ rated capacity | 3.868 ft³ (0.1095 m³) |
| Total Tube Buoyancy | 745 lbs. (337 kg) |
| Buoyancy Per Person: @ rated capacity | 186 lbs. (84.5 kg) |
| Total Deck Area | 14.4 ft² (1.34 m²) |
| Deck Area Per Person: @ rated capacity | 3.60 ft² (0.334 m²) |
| Tube Operating Pressure |
Minimum: 1.5 psig (0.10 bar) |
| Pressure Relief Valves |
Open: 2.0 psig (0.14 bar) |
| Tube Burst Pressure | Over 6 psig (0.4 bar) |
| Inflation System |
Cylinder Size: 110 in³ |
| Environmental Limits | |
| Temperature | |
| Humidity |
Up to 95% relative humidity |
| Altitude | -2000 to 45,000 ft. above sea level |
| Service Life |
Indefinite if raft continues to pass periodic maintenance inspection |
| Frequency Of Inspection |
36 months from last compressed gas cylinder hydro test date for first maintenance inspection, every 36 months for subsequent inspections |
APPROVALS
USA: FAA TSO-C70a, Type II
- For Part 91, 121, 135 Operators (Corporate, Air Cargo, Air Taxi)
- Single Tube Multi-chamber
- Compact, lightweight. Constructed of neoprene coated nylon.
- High tech inflation system.
- Competitively priced.
