SPECIFICATIONS
| Capacity |
Rated: | Overload: 15 Persons |
| Approval |
USA: FAA TSO-C70a, Type I |
| Color | Raft: Yellow Carrying case: Yellow Canopy: Fluorescent Orange R1300-2XX: Orange outside Blue inside Stabilizing Bags: Fluorescent Orange R1300-2XX: Orange outside Blue inside |
| Diameter Raft Tube | 11.25" (28.58 cm) |
| Inflated Volume: @ 1.50 psig |
Tube 1: 18.01 ft³ (0.5060 m³) |
| Tube Volume Per Person: @ rated capacity | 3.81 ft³ (0.108 m³) |
| Total Tube Buoyancy | 1720 lbs. (780.2 kg) |
| Buoyancy Per Person: @ rated capacity | 172 lbs. (78 kg) |
| Total Deck Area | 36.0 ft² (3.34 m²) |
| Deck Area Per Person: @ rated capacity | 3.60 ft² (0.334 m²) |
| Tube Operating Pressure |
Minimum: 1.5 psig (0.10 bar) |
| Pressure Relief Valves |
Open: 2.5 - 3.0 psig (0.17 - 0.21 bar) |
| Tube Burst Pressure | Over 6 psig (0.4 bar) |
| Inflation System |
Cylinder Size: 285 in³ |
| Environmental Limits | |
| Temperature | |
| Humidity |
Up to 95% relative humidity |
| Altitude | -2000 to 45,000 ft. above sea level |
| Service Life |
Indefinite if raft continues to pass periodic maintenance inspection |
| Frequency Of Inspection |
36 months from the date of manufacture for first maintenance inspection, every 36 months for subsequent inspections |
APPROVALS
USA: FAA TSO-C70a, Type I
Europe: EASA ETSO 2C70a, Type I
Japan: JCAB CARJ Article 152
- For Part 91, 121, 135 Operators (GA, Corporate, Helicopter, Air Taxi)

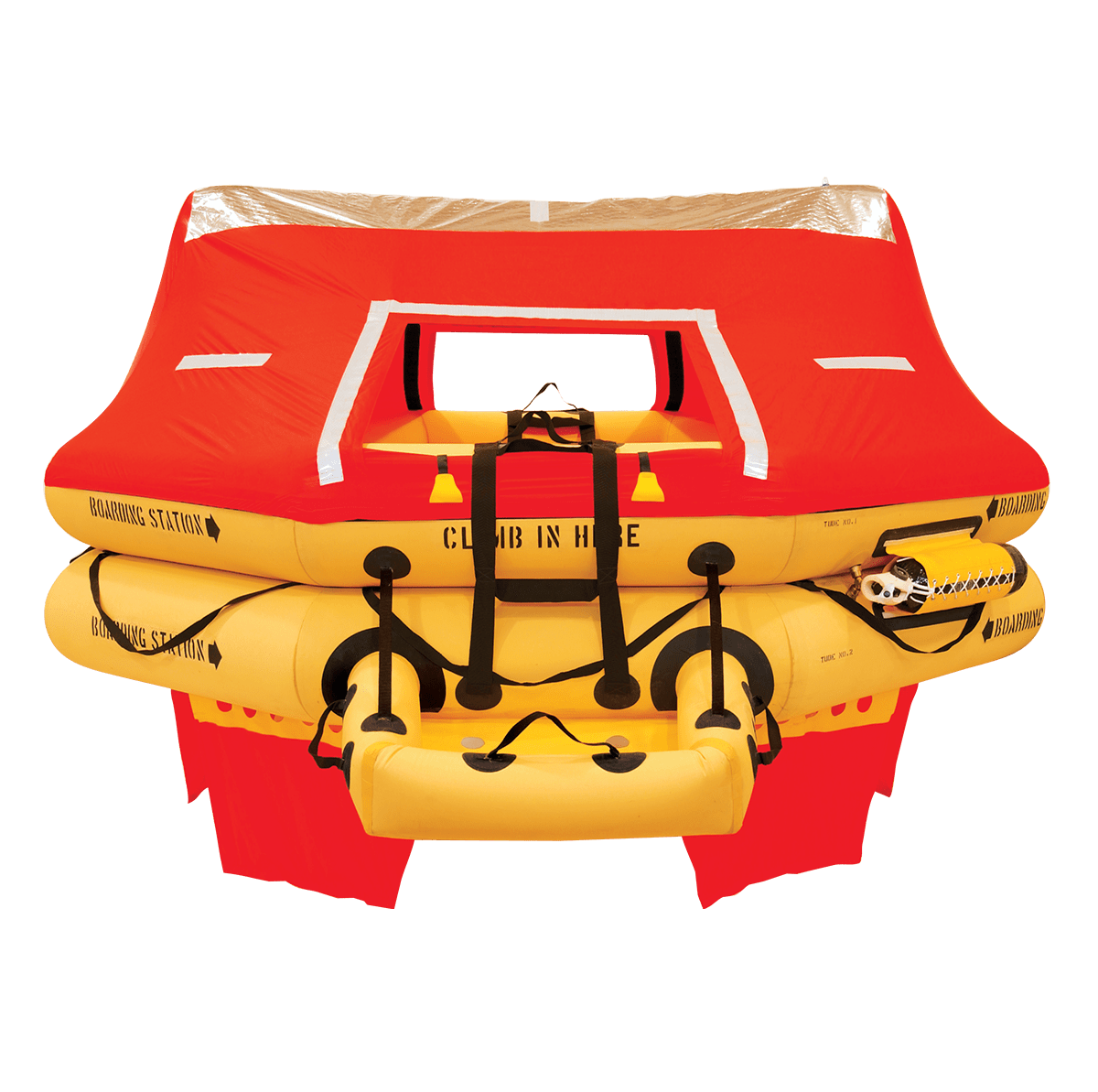

- Twin Tube Transport Series.
- Compact, lightweight. Constructed of neoprene coated nylon.
- High tech inflation system.
- Competitively priced.
