USA: FAA TSO-C13d, Type I
Europe: EASA ETSO C13f, Type I
Brazil: ANAC RBAC 21
Germany: LBA 40.321
Italy: ENAC
Japan: JCAB CARJ Article 152

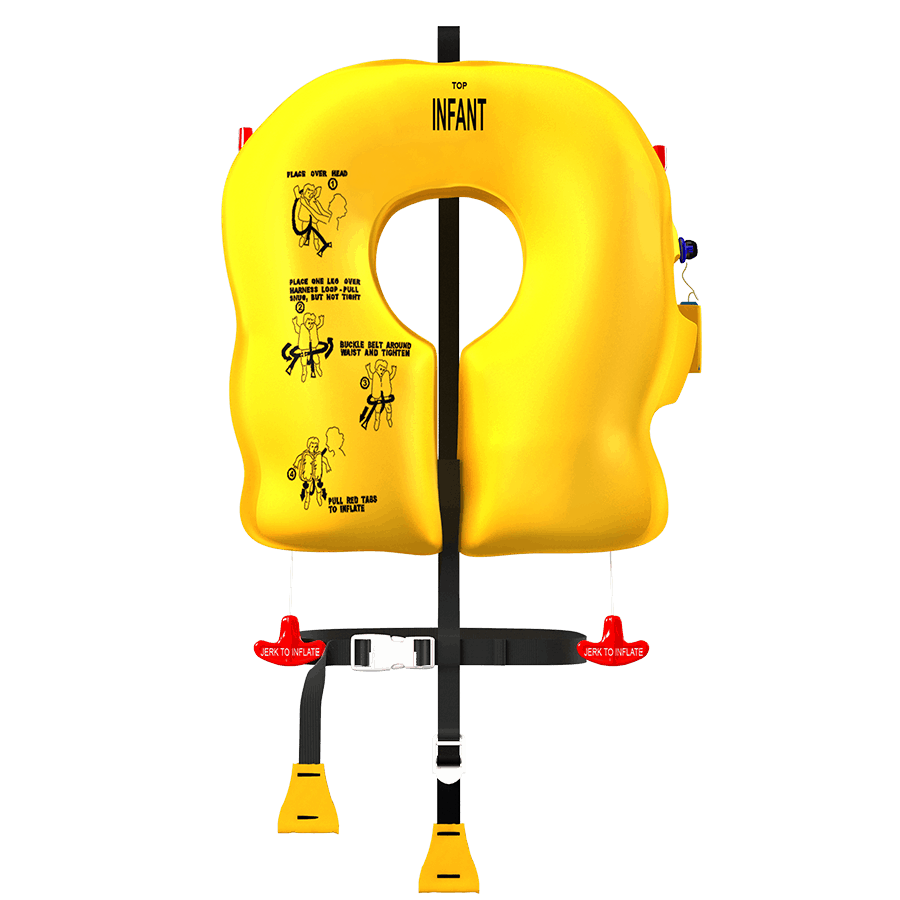

This specially designed and affordable life vest is made exclusively for children less than 35 lbs. (16 kg). EAM infant vests come in USA and European versions, for the constantly changing safety markets of commercial carriers.
| Inflated Buoyancy: | 20 lbs. (89 Newtons) minimum |
| Inflated Volume: | 554 cu. in. (9 liters) minimum |
| Approvals: |
USA: FAA TSO-C13d, Type I |
| Category of Preserver: | Infant |
| Weight of Wearer: | Under 35 lbs. (15.9 kg) |
| Inflatable Buoyancy Cell:: |
2 Independent Cells |
| Material/Construction: |
Material - Urethane Coated Nylon |
| Inflation System: |
Manual CO₂ Inflator and an Oral Inflation Tube in each Buoyancy Cell |
| Color: | Passenger Yellow |
| Humidity: |
Up to 95% relative humidity |
| Altitude: | -2000 to 45,000 ft. above sea level |
| CO2 Gas Charge: | 2 x 0.019 lbs. (2 x 9 grams) |
| Survivor Locator Light: | Water-activated. FAA TSO-C85 or TSO-C85a Approved. |
| Packaging Options: |
- Flame Retardant 0.004 inch (0.1 mm) thick polyethylene bag with Tear Open Strip |
| Other Options: |
- Whistle |
| Service Life: |
Indefinite if unit continues to pass periodic maintenance inspection |
| Frequency of Inspection: |
P0640-1XX Assys. - 60 months from in-service date (no later than 63 months from manufactured date) for first maintenance inspection, every 60 or 48 months for subsequent inspections P0640-2XX - 60 months from in-service date (no later than 63 months from manufactured date) for visual inspection, 10 years from date of manufacture for first maintenance inspection, every 10 years for subsequent inspections |
| Temperature: |
Operational Range: -40 to 140 °F (-40 to 60 °C) Storage Range: -40 to 140 °F (-40 to 60 °C) |
