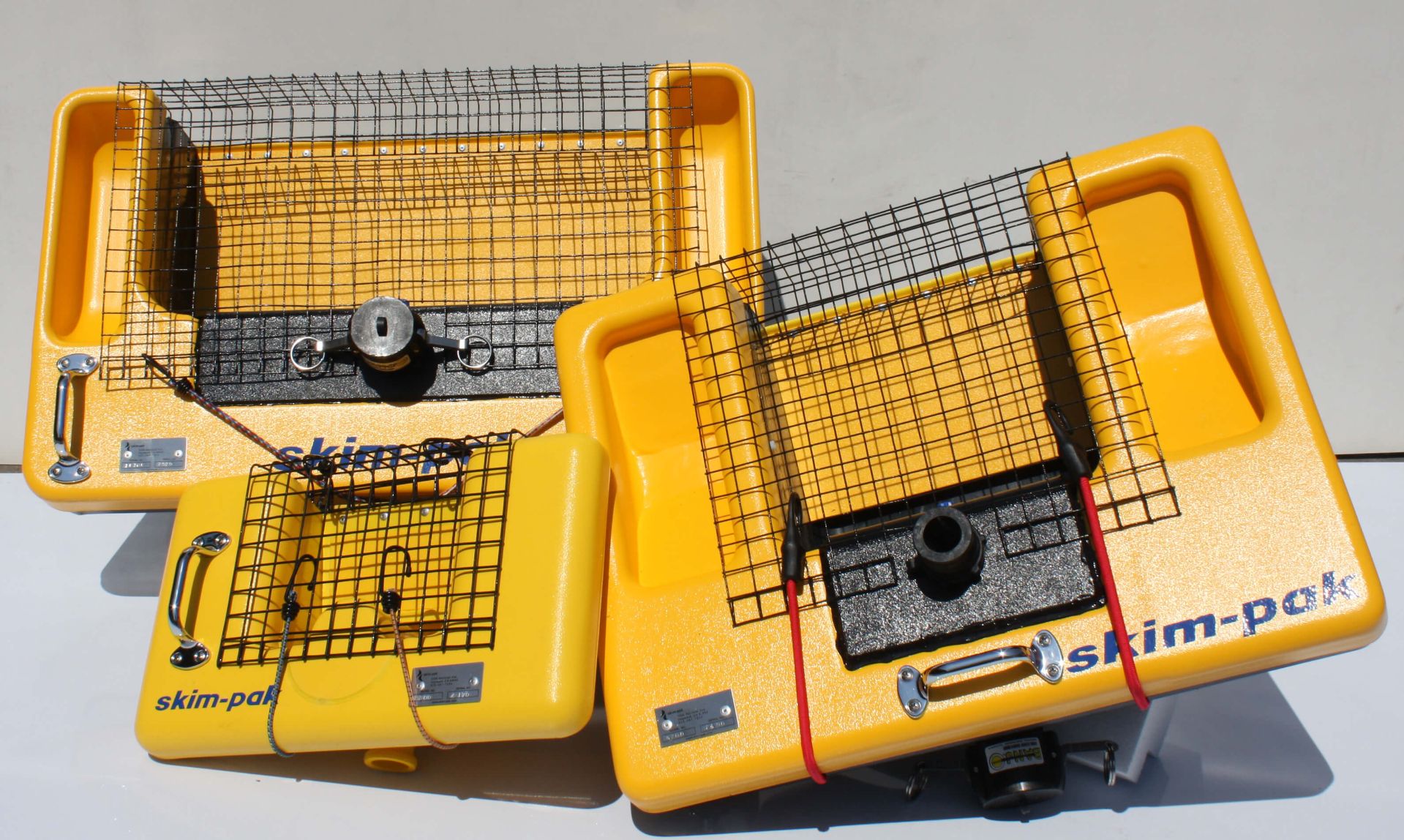

Abasco Weir Skimmer
ABASCO offers a wide variety of weir style skimmers suited for numerous applications in both oil spill and industrial applications.
The weir skimmers require either a suction pump or vacuum system to collect the free floating hydrocarbons or other materials. Weir skimmers are designed for easy portability, rapid response and low cost removing floating oil that can flow over the weir.
SYSTEM FEATURES
- Durable ABS Plastic Construction
- Self-Adjusting Weir
- Light Weight
- 360 Degree Surface Attraction
- Static or Operator Controlled
ACCESSORIES
- Hose. Flexible light weight suction hose with quick connect fittings.
- Hose float: Hose float is needed behind the skimmer to support the hose.
- Control System: Wand kit to connect to top of skimmer for manual operation.
| MODEL | FLOW RATE | PORT SIZE | WEIR | DIMENSIONS | WEIGHT | DRAFT |
| 2300-SH | 5-58 GPM | 1.5" | 8" | 20" x I2" x 6" | 8 LBS. | 5" |
| 4300-SH | 5-95 GPM | 2" | 12" | 28" x 21" x 8.25'' | 25 LBS. | 6.6" |
| 18300-SH | 5-420 GPM | 3" | 20" | 40" x 24" x 15" | 38 LBS. | 8.4" |
| 20300-SH | 10-600 GPM | 4'' | 39" | 60" x 30' x 18" | 45 LBS. | 10.5" |
